ThousandEyes Walkthrough Part 3 – Enterprise and Endpoint Agent Installs

Posted on by Dan Kelcher

This post will go over installing the ThousandEyes agents in the lab. To see all the posts in this series expand the box below.

ThousandEyes Walkthrough Table of Contents

There are some behind-the-scenes posts that go into more detail on how and why I took the approach that I did. Those can be found here:

There are going to be a number of agent deployments in the lab that was covered in the previous post:

  • 4x Linux Enterprise Agent installs on the CML Ubuntu instances
    • CS1-1, CS1-2, CS2-1, and CS2-2
  • 2x Docker Enterprise Agent container deployments on the Ubuntu Docker host
    • These two agents will be added to a cluster
  • 1x Raspberry Pi Enterprise agent (optional)
  • 1x Windows Endpoint Agent install on the Windows VM

Prerequisites

The lab needs to be built out.  Details on that process can be found here: https://www.mytechgnome.com/2022/03/thousandeyes-walkthrough-part-2-lab.html
Before we can start with the agent installs some ThousandEyes licenses are required.  It’s possible you already have some ThousandEyes licenses.  Cisco has bundled Enterprise Agents with the purchase of DNA Advantage or Premier licensing on the Catalyst 9300 and 9400 switches.

If existing licenses are unavailable a 15-day trial license can be requested here: https://www.thousandeyes.com/signup/

Additional hardware and software

As a side note – if you plan to work a lot with the Raspberry Pi I strongly recommend getting the USB 3 adapter.  It has a significant improvement in performance over the USB 2 adapters that are typically bundled with Raspberry Pi kits.  The SD cards recommended by ThousandEyes are because of the card performance.  Other cards can be used, but there may be a negative impact on performance.

Installs

Account Group Token

Before getting started with the installs it is important to get your Account Group Token.  This is an ID that is used to associate the agents to the correct account.  When deploying agents it will often require the token to be specified.
There’s multiple ways to find the token, but I think the easiest is to just pull it from the Enterprise Agent deployment panel
  1. Open a web browser and navigate to https://www.thousandeyes.com/
  2. Log into your account
  3. Click the Hamburger icon in the top left
  4. Expand Cloud & Enterprise Agents
  5. Click Agent Settings
  6. Click the Add New Enterprise Agent button
  7. Click the eye button to show the token, or the copy button to store it on the clipboard
    2. In a production environment you would want to keep this token safe.  It provides devices access to your ThousandEyes account, so it should not be made public
  8. Store the token in a safe, convenient location.  It will be used to add agents to the ThousandEyes account throughout this process.

Linux Enterprise Agent install

  1. Open a web browser and navigate to https://www.thousandeyes.com/
  2. Log into your account
  3. Click the Hamburger icon in the top left
  4. Expand Cloud & Enterprise Agents
  5. Click Agent Settings
  6. Click the Add New Enterprise Agent button
  7. Click the option for Linux Package
  8. Copy the commands displayed
    2. curl -Os https://downloads.thousandeyes.com/agent/install_thousandeyes.sh
chmod +x install_thousandeyes.sh
sudo ./install_thousandeyes.sh -b <--Your Token goes here-->
  9. Perform the following steps for CS1-1. CS1-2, CS2-1, and CS2-2 in CML
    1. In CLM open the terminal session and log in
    2. Paste the commands into the terminal and press Enter
    3. It may take some time, but eventually there will be a prompt that say:

      The default log path is /var/log. Do you want to change it [y/N]?

    4. Press Enter to accept the default log location
    5. It might take 10 minutes or it could be over an hour for the process to complete and the agent to come online.  When it returns to the user prompt the service should be started.
  10. When the installs are complete they should be listed in the ThousandEyes portal under Enterprise Agents
    2. If the agent status is yellow it likely means an agent update is required, and it should automatically update within a few minutes

Docker Enterprise Agent install

    1. Open a web browser and navigate to https://www.thousandeyes.com/
    2. Log into your account
    3. Click the Hamburger icon in the top left
    4. Expand Cloud & Enterprise Agents
    5. Click Agent Settings
    6. Click the Add New Enterprise Agent button
    7. Click the option for Docker
    8. Scroll down to the sections with the commands
    9. Copy the section to configure seccomp and apparmor profile
      2. curl -Os https://downloads.thousandeyes.com/bbot/configure_docker.sh
chmod +x configure_docker.sh
sudo ./configure_docker.sh
    10. Log in to the Ubuntu node that is the Docker host and paste in the commands:
      1. Add listening IPs for the Docker containers
        1. sudo ip add add 192.168.1.51 dev ens33
sudo ip add add 192.168.1.52 dev ens33
      2. Pull the TE Docker image
        1. docker pull thousandeyes/enterprise-agent > /dev/null 2>&1
      3. Update these commands by putting in your ThousandEyes token and changing the IPs if needed, then run them to create two ThousandEyes agents.

NOTE: These commands have been updated to include DNS and IP settings that aren’t available on the ThousandEyes Enterprise Agent page. If you use the commands from ThousandEyes the DNS and Published ports will need to be updated.

      1. docker run
  --hostname='TE-Docker1'
  --memory=2g
  --memory-swap=2g
  --detach=true
  --tty=true
  --shm-size=512M
  -e TEAGENT_ACCOUNT_TOKEN=<--Your Token goes here-->
  -e TEAGENT_INET=4
  -v '/etc/thousandeyes/TE-Docker1/te-agent':/var/lib/te-agent
  -v '/etc/thousandeyes/TE-Docker1/te-browserbot':/var/lib/te-browserbot
  -v '/etc/thousandeyes/TE-Docker1/log/':/var/log/agent
  --cap-add=NET_ADMIN
  --cap-add=SYS_ADMIN
  --name 'TE-Docker1'
  --restart=unless-stopped
  --security-opt apparmor=docker_sandbox
  --security-opt seccomp=/var/docker/configs/te-seccomp.json
  --dns=10.133.100.10
  --dns-search=cml.lab
  --publish=192.168.1.51:49152:49152/udp
  --publish=192.168.1.51:49153:49153/udp
  --publish=192.168.1.51:49153:49153/tcp
  thousandeyes/enterprise-agent /sbin/my_init
      2. docker run
  --hostname='TE-Docker2'
  --memory=2g
  --memory-swap=2g
  --detach=true
  --tty=true
  --shm-size=512M
  -e TEAGENT_ACCOUNT_TOKEN=<--Your Token goes here-->
  -e TEAGENT_INET=4
  -v '/etc/thousandeyes/TE-Docker2/te-agent':/var/lib/te-agent
  -v '/etc/thousandeyes/TE-Docker2/te-browserbot':/var/lib/te-browserbot
  -v '/etc/thousandeyes/TE-Docker2/log/':/var/log/agent
  --cap-add=NET_ADMIN
  --cap-add=SYS_ADMIN
  --name 'TE-Docker2'
  --restart=unless-stopped
  --security-opt apparmor=docker_sandbox
  --security-opt seccomp=/var/docker/configs/te-seccomp.json
  --dns=10.133.100.10
  --dns-search=cml.lab
  --publish=192.168.1.52:49152:49152/udp
  --publish=192.168.1.52:49153:49153/udp
  --publish=192.168.1.52:49153:49153/tcp
  thousandeyes/enterprise-agent /sbin/my_init
  2. When the installs are complete they should be listed in the ThousandEyes portal under Enterprise Agents
    2. If the agent status is yellow it likely means an agent update is required, and it should automatically update within a few minutes

Docker Enterprise Agent configuration

There are two configuration tasks that will be performed on the Docker agents.  The IP setting in ThousandEyes will be updated to use the host IPs that are tied to the Docker agents instead of the private Docker IPs, and the two agents will be added to a ThousandEyes Cluster.
  1. Open a web browser and navigate to https://www.thousandeyes.com/
  2. Log into your account
  3. Click the Hamburger icon in the top left
  4. Expand Cloud & Enterprise Agents
  5. Click Agent Settings
  6. Click on the Agent
  7. In the right panel click on Advanced Settings
  8. Updated the IP address with the address assigned to that instance
  9. Click the Save Changes button on the bottom right
  10. Repeat this process for the other container agent
  11. At the Enterprise Agents page select both Docker agents
  12. Click the Edit button
  13. Select Edit Cluster
  14. On the right select Add to a new cluster
    2. In the name field type Docker
  15. Click Save Changes
    2. It will give a confirmation screen, click Save Changes again
  16. The agent icon will be updated to include the cluster icon, and under the Cluster tab it will display the new cluster
Wondering why those changes were made?
The first change to the IP address was because ThousandEyes learns the IP address of the agent from its local configuration.  Docker, by default, creates a bridged network that uses NAT to communicate with the rest of the network.  That means the addresses Docker assigns to containers aren’t accessible on the network.  The additional IPs were added to the Ubuntu host to allow static NAT entries to be created in Docker (the Publish lines), which redirect traffic to sent to those IPs to the correct agent.  Since there are two containers using the same ports, we need two IP addresses to uniquely address each instance.  The change that was made to the agent settings in ThousandEyes forces other agents to use the routed 192.168.1.0/24 LAN network instead of the unrouted 172.17.0.0/16 Docker network.  This is only needed because we are going to build inbound tests into those agents.  If this was only outbound then it wouldn’t matter.
As for the creation of the cluster, this was done for high availability.  Granted, in this scenario both instances are running on the same Docker host which defeats the purpose.  However, it still illustrates how to configure the cluster.  The purpose of the cluster is exactly what would be expected.  Both agents share a name, and are treated as a single agent.  If a test is assigned to a cluster then either instance could run it.  In addition to high availability, this also can provide some load balancing between the agents, and it can simplify test creation.  Instead of managing tests to multiple instances in one location we can use the cluster agent to distribute those tests.

Raspberry Pi Enterprise Agent install

I have an automated configuration process for the Raspberry Pi image: https://www.mytechgnome.com/2023/06/15/automated-thousandeyes-raspberry-pi-image-customization/

  1. Open a web browser and navigate to https://www.thousandeyes.com/
  2. Log into your account
  3. Click the Hamburger icon in the top left
  4. Expand Cloud & Enterprise Agents
  5. Click Agent Settings
  6. Click the Add New Enterprise Agent button
  7. The pane on the right should open the the Appliance tab, under Physical Appliance Installer find the Raspberry Pi 4, and to the right of that click Download – IMG
  8. Wait for the download to complete.  It’s nearly a 1GB file, so it might take a few minutes.
  9. Connect the SD card to the computer that will be doing the imaging
    1. This process erases the entire card.  Make sure you are using a blank card, or you have any valuable data on the card backed up elsewhere.
  10. Launch the Raspberry Pi Imager
  11. Under Operating System click Choose OS
  12. Scroll down to the bottom of the list and click Use custom
  13. Browse to the location of the downloaded image, select it, and click Open
  14. Under Storage click on Choose Storage (or Choose Stor…)
  15. Select the SD card in the window that pops up
    2. If the SD card does not show up try reseating the card
  16. Click Write
  17. Continuing this process will erase all data on the SD card, if that’s acceptable click Yes
  18. A progress bar will be displayed, and after a few minutes the image copy should complete successfully.  Click continue and close the Raspberry Pi Imager software
  19. Remove the SD card from the imaging PC and insert it in the Raspberry Pi.
  20. Boot the Raspberry Pi
    1. You’ll want a monitor connected to find the IP assigned, though this could also be done by looking at DHCP leases, scanning the network, or trying name resolution for the default hostname: tepi
    2. Make sure there’s a network cable plugged in and connected to the LAN (the ThousandEyes agent doesn’t support wireless connections)
  21. When the Pi finishes booting find the IP address displayed on the screen
  22. Use a web browser to connect to the IP of the Pi agent (using the name might work – https://tepi/)
  23. Likely the browser will display a security warning because the certificate is untrusted.  Go through the steps required to accept the security risk and access the site.
  24. At the login page enter the default credentials: admin / welcome
    2. After logging in there may be an error message that briefly appears in the lower right stating the Account Group Token needs to be set.  This will be resolved shortly, and the error can be ignored for now.
  25. The first page will prompt to change the password.  Enter the current password and create a new one, then click Change Password
    2. After the password change is saved click the Continue button at the bottom of the page
  26. The next page prompts for the Account Group Token.  Enter the token value that was collected earlier in this post and then click Continue
    2. Even though there is a button to enable Browserbot here, the Raspberry Pi agent does not support it.  Leave that field set to No.  You can decide if you want to leave the crash reports enabled.
  27. The agent will go through a check-in process and provide diagnostic data.  If everything looks good you can click Complete
  28. That completes the required agent set up.  It will then bring you to the network configuration page.  Scroll down to the DNS section, switch the Current DNS Resolver to Override and enter the IP 10.133.100.10 in the Primary DNS box
    2. For the purposes of this lab none of the other settings need to be changed.  A static IP can be configured and/or the hostname could be changed if desired
  29. The agent should now be listed in the ThousandEyes portal under Enterprise Agent
    2. If the agent status is yellow it likely means an agent update is required, and it should automatically update within a few minutes
That completes the Enterprise Agent installations for the lab.

Windows Endpoint Agent install

  1. Start the Windows VM and log in
  2. Open a web browser and navigate to https://www.thousandeyes.com/
  3. Log into your account
  4. Click the Hamburger icon in the top left
  5. Expand the Endpoint Agents section
  6. Click on Agent Settings
  7. Either a splash screen with a Download button will appear, or there will be a button to Add New Endpoint Agent.  Click the button that shows up – both bring up the same pane
    1. Splash screen –
    2. Add Endpoint Agent Button
  8. Leave the Endpoint Agent radio button selected and click the button Download – Windows MSI
    2. The Mac installation isn’t being covered here, but there’s instructions on how to install it here: https://docs.thousandeyes.com/product-documentation/global-vantage-points/endpoint-agents/installing
  9. There will be two options for the processor architecture, select the x64 Windows MSI
  10. When the download completes run the MSI
  11. The installation is a typical MSI package, so I’m not going to include screenshots for every step
    1. Click Next to start the install
    2. Read the EULA and if you agree to the terms check the box to accept and click Next
    3. Click on the TCP Network Tests Support and select “Will be installed on local hard drive”
    4. Do the same for at least one browser extension.  Edge is the default browser on Windows 10, but if you want to install and use Chrome then get Chrome installed before continuing the Endpoint Agent installation.  Click Next when you have the browser selected.
    5. Click Install
    6. If there us a UAC prompt for the install, click yes to continue
    7. Click Finish
  12. It might take a few minutes for the agent to check in, but eventually you should see the agent listed under Endpoint Agents in the portal

Conclusion

This was the first post actually working with ThousandEyes, and hopefully it illustrates how powerful this tool is.  As part of the lab there are four different types of agents installed, but there’s many more available:
  • Bare metal install (Intel NUC or other hardware)
  • OVA (VMware ESX, Workstation, and Player, Microsoft Hyper-V Oracle VirtualBox)
  • Application hosting on Cisco platforms (Catalyst 9300 and 9400, Nexus 9300 and 9500, Catalyst 8000, ISR, ASR)
  • AWS CloudFormation Template
  • Mac OS Endpoint Agents
  • Pulse Endpoint Agents for external entities
In addition to the breadth of agents available, the deployment can easily be automated.  I’ve written a script that wrote the Raspberry Pi image to an SD card, then mounted it and applied customizations.  The MSI package can be used with the plethora of Windows software deployment tools, or a link can be given to end users to install on their own.  With DNA Center the image can be pushed to Catalyst switches in bulk.  The Docker images can be build with Docker files.  If that’s not enough, there’s also all the automation tools – Ansible, Terraform…
Getting ThousandEyes deployed throughout an environment can be done with ease.

What’s next?

That completes the agent installation.  The next installment in this series will cover some test scenarios, and walk through getting monitoring configured and tests created.

ThousandEyes Walkthrough Part 2 – Lab build

Posted on by Dan Kelcher

This post will go over getting a ThousandEyes lab built out. To see all the posts in this series expand the box below.

ThousandEyes Walkthrough Table of Contents

There are some behind-the-scenes posts that go into more detail on how and why I took the approach that I did. Those can be found here:

Lab Build

Topology

I’ve built out this lab using VMware Workstation and Cisco Modeling Labs to simulate a network for ThousandEyes to monitor.

The lab is broken down into four types of sites, Client, ISP, Public, and External.  There are two Client sites, each consisting of two routers and two Ubuntu instances.  The routers are running BGP, and have SNMP enabled.  The first Ubuntu instance is only running a ThousandEyes agent, and the other instance is running a ThousandEyes agent and an Apache webserver.

The ISP networks are routers running BGP interconnecting all the other sites.  I have SNMP enabled on them just to show what ThousandEyes can do with SNMP monitoring.  Normally isn’t going to be accessible on ISP devices.

The Public zone is also running BGP and has an Ubuntu instance that is running DNS for the entire CML.LAB network.

The External site is used to bridge the lab environment to the network outside CML.  It has a static route out to the LAN gateway that is redistributed into BGP, and a static IP assigned on the LAN.  For traffic leaving the LAN, it has NAT configured.  This should reduce the configuration needs on the LAN side.  A static route can be added to the LAN gateway to send traffic to the External router, or static routes can be added to the individual devices that will connect to the lab network.

In addition to the CML lab, three additional devices will be deployed, an Ubuntu Server running Docker for ThousandEyes Enterprise Agents, a Windows 10 VM running the ThousandEyes Endpoint Agent, and a Raspberry Pi running the ThousandEyes Enterprise Agent.

This table breaks down the resources assigned to each node and the total amount of resources.  The CML VM will need to have enough assigned to it to allow the nodes inside it to run.


The Windows and Ubuntu Docker nodes will sit outside CML, as VMs in VMware Workstation.  There will also be a Raspberry Pi added to the environment.

Installation Prerequisites

Installation Process

The easiest way to get the lab up and running is to import a YAML file.  This file contains everything you need to get started, but some updates may be required.  The lab is configured for internet access, and there is a static IP and gateway assigned.  The LAN addressing might need to be updated to match your environment.

If you choose not to use the YAML import you can find the relevant node configurations in the YAML and then create and configure the nodes accordingly.
Expand each of the following sections for steps on how to build out the lab.

The YAML file can be downloaded from GitHub here: https://github.com/mytechgnome/CML-TE-Lab/blob/main/TE.yaml

Create a YAML file with this – Click to expand



Import YAML into CML – Click to expand

To import this into CML follow these steps:

  1. Copy the above YAML data into a new file
  2. Save the file as TE-Lab.yaml
  3. Log in to CML
  4. From the Dashboard Click Import
  5. Click in the File(s) to import area
  6. Browse to the location the YAML file was saved and select it
  7. Click Import
  8. It should import the lab successfully. Click the Go To Lab button

The entire simulation can be started at once, or the individual nodes can be started.  If they are being started manually start with the external connection, and work through all the routers first.  Then move on to PS3-1.  This node will take a few minutes to complete.  The remaining CS nodes can be started after PS3-1 completes its startup.

Credentials

Routers do not have a username or password to log in.  There is no enable password.
Ubuntu nodes: cisco/cisco

Verification tasks


Routers

  • show ip route
    • The route table should be populated, including a default route
  • ping 8.8.8.8
    • Should receive replies
    • If this fails verify the configuration of Gi0/0 matches the LAN requirements, and the CML VM NIC is configured for bridged access

PS3-1

  • systemctl status bind9
    • Should display active.  If this fails verify internet connectivity and then run these commands:
    • sudo apt-get update
    • sudo apt install install -o Dpkg::Options::=”–force-confold” bind9 -y
  • ping cisco.com
    • Should receive replies

CS1-2 and CS2-2

  • systemctl status apache2
    • Should display active.  If this fails verify internet connectivity and then run these commands:
    • sudo apt-get update
    • sudo apt install apache2
  • ping cisco.com
    • Should receive replies


Ubuntu Docker Host Deployment – Click to expand

  1. Open VMware Workstation and create a new VM by pressing Ctrl + N
  2. When the New Virtual Machine Wizard opens click Next
  3. Select the option for Installer disk image file (iso)
    1. Browse to the location of the Ubuntu Server ISO and click Next
  4. Enter a username and password, then click Next
  5. Enter a name for the VM, and verify the path, then click Next
  6. Set the virtual hard drive to 30GB, then click Next
  7. Click Customize Hardware
  8. Select the Network Adapter, change the Network Connection to Bridged, then click Close
  9. Click Finish
  10. Wait for the OS installation process to start
  11. Select your language and press Enter twice to select and confirm
  12. Use the arrow keys to select the NIC and press Enter
  13. Highlight Edit IPv4 and press Enter
  14. Press Enter to change the address assignment method and select Manual
  15. Use the arrow keys to move between fields filling out the IP address info, and then go to Save and press Enter when complete
    2. The default DNS server for the lab is 10.133.100.10, and the search domain is cml.lab
  16. Highlight Done, and press Enter
  17. Press Enter again to skip the Proxy config
  18. Press Enter again to use the default mirror location
  19. Use the arrow keys to highlight Done and press Enter to accept the default storage config
  20. Press Enter again to accept the file system config
  21. Highlight Continue and press Enter to confirm the storage settings
  22. Use the arrow keys to move between fields, fill out the Profile info, and then go to Done and press Enter when complete
  23. Press Enter again to skip Ubuntu Advantage
  24. Press Enter to enable SSH access, then highlight Done and press Enter
  25. Use the arrow keys to go down to highlight Done, and press Enter
  26. Wait for the installation to complete
  27. When the installation finishes highlight Reboot Now and press Enter
  28. When the server is back up log in
  29. Run the following commands to install Docker

sudo apt-get update
sudo apt-get install
ca-certificates
curl
gnupg
lsb-release
curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo gpg --dearmor -o /usr/share/keyrings/docker-archive-keyring.gpg
echo
"deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/docker-archive-keyring.gpg] https://download.docker.com/linux/ubuntu
$(lsb_release -cs) stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null
sudo apt-get update
sudo apt-get install docker-ce docker-ce-cli containerd.io -y


Windows 10 Endpoint Deployment – Click to expand

Create the Windows VM

  1. In VMware Workstation press CTRL+N to open the New Virtual Machine Wizard, and make sure Typical is selected, then click Next
  2. Select the option for Installer Disc Image File, and browse to the location you downloaded the Windows 10 ISO to then click Next
  3. Enter the name for the client and select the location
  4. Use the default hard drive size of 60GB (another drive will be added later for the iSCSI target storage), and click Next
  5. Click Customize Hardware
  6. Adjust the CPU and RAM as needed for your environment (2 vCPUs 4-8GB RAM would be recommended), and change the Network Adapter from NAT to Bridged
  7. Click close, verify the box is checked for “Power on this virtual machine after creation” and click finish.

Deploy the Windows OS


NOTE: While in the VM you will need to press Ctrl+Alt to release the cursor to get to your desktop

  1. >While the VM is booting you might see a prompt to press a key to boot from CD.  If that happens click into the window and press a key.
  2. Select the language, and keyboard settings
  3. Click Install Now
  4. On the Activate Windows screen click “I don’t have a product key”
  5. Select Windows 10 Pro and click Next
  6. Read through all of the licenses terms, and if you accept the terms check the box to accept them and click Next
  7. Select the Custom install option
  8. By default, it should already select Drive 0, which is the 60GB drive initially created.  Click next.  The OS install will start, so just let that process run.

OS Initial Config


Windows 10 has several steps to go through to get the OS configured before actually loading to a desktop.

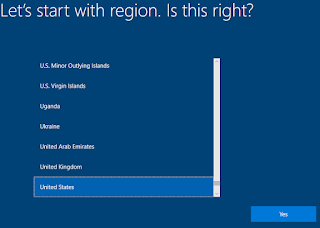

  1. Select your regions and Click Yes
  2. Select your keyboard layout
  3. Skip adding the additional keyboard
  4. Wait a moment for it to progress to the account creation screen, then select “Set up for personal use” and click Next
  5. Microsoft is going to try to link to an online account, but since this is for a temporary lab PC click on “Offline account” in the bottom left.
  6. Microsoft really tries to push the online account, so again look in the bottom left corner and select “Limited experience”
  7. Enter a username and click Next
  8. Create a password and click Next
    2. The next screen will ask to confirm the password.  Reenter the password and click Next
  9. When prompted for the three security questions I just select the first three options and enter random characters.  This is a lab, and if I happen to forget the password I can easily recreate the VM.  Click Next
    2. Repeat the process for the other two questions.
  10. For the privacy settings, this really doesn’t matter, as it’s a lab machine that won’t exist for long.  Everything can be left enabled by default, or it can be disabled.  After applying the settings click Accept.
  11. On the Customize Experience page just click Skip
  12. Cortana… Microsoft really wants people to enable all their stuff.  Click “Not now” to move on.
  13. Success! The post-install prompts are done.  Now, wait for the configuration to complete.

Client OS config


To configure the OS there are only two tasks that are going to be performed.

  • Install VMware Tools
  • Configure DNS

Install VMware Tools

  1. Log into the VM using the password set previously
  2. Right-click on the VM in the Library and select Install VMware Tools
  3. Autorun should prompt to run, but if not then navigate to the D: drive and double click it.  That should kick off the Autorun for the installer.
  4. Follow the defaults for the installation.  Next > Next > Install > Finish and then click Yes when prompted for a reboot.

Configure DNS

  1. Open Powershell as admin
    1. Press the Windows key and type powershell
    2. Press Crtl+Shift+Enter to run as admin
  2. Run these commands:

Set-DnsClientServerAddress -InterfaceAlias Ethernet0 -ServerAddresses 10.133.100.10

Set-DnsClientGlobalSetting -SuffixSearchList cml.lab

There’s a lot to the lab build, but hopefully, it went smoothly.  If there were any issues you can add a comment to this post, or reach me on Twitter @Ipswitch.
As the lab build-out continues I may need to come back and edit the configuration here.

CHANGELOG

v1.1
  • CML Lab YAML data
    • Corrected IR2-2 Gi0/0 IP configuration and BGP peering
    • Corrected IP assignment on PR3-2 – config was moved from Gi0/3 to Gi0/4
    • Added loopback interfaces to all routers (will be used for SNMP connections)
    • Updated DNS records to use loopback addresses
  • Lab config

What’s Next?

The next entry in this series will cover getting the ThousandEyes agent deployed into the lab, and getting things ready to start building tests and collecting data.
